Oil Purifier System

VacuClean

VacuClean

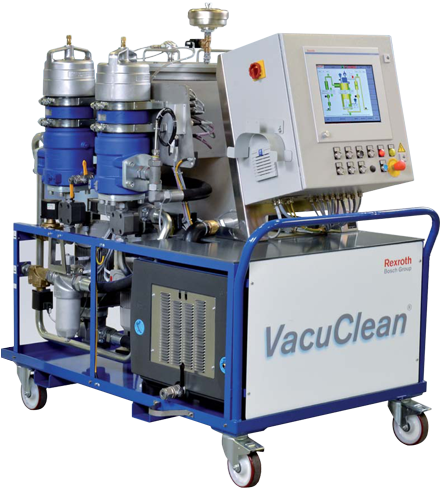

The VacuClean oil preparation system removes dirt, oil aging products, gases as well as free and dissolved water from hydraulic and lubricating oils in the bypass.

The effectiveness of the system is ensured by multi-stage filtration and the very low pressure within the vacuum chamber evacuated by the water ring vacuum pump.

VacuClean Capabilities

  • Excellent dewatering capabilities
  • Particle filtration up to 1 micron absolute
  • Variable flow rate up to 50LPM, adjustable based on target purity and water content

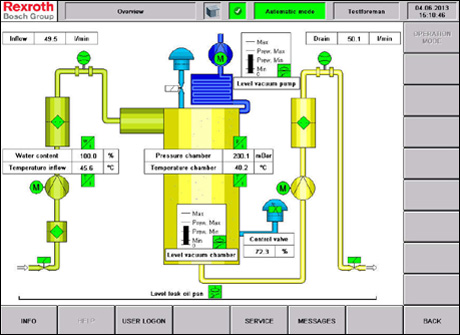

  • Simple HMI interface

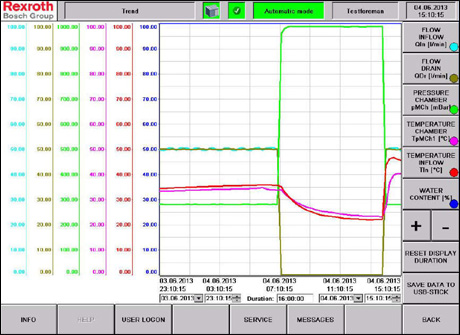

  • Online particle counter & water content monitoring
  • Water discharge at 30°C due to high vacuum pressure
  • Max 8kW consuption, 32A CEE 30ph plug
